Width 100-300
Height mm 100-1000
Weight kg 20.4-314
Shelf thickness mm 10-36
Wall thickness 6-19
| Steel grade | Steel grade according to EN | Standard |
| S235JR | 1.0038 | En 10025 |
| S235J2 | 1.0117 | En 10025 |
| S275JR | 1.0044 | En 10025 |
| S275J0 | 1.0143 | En 10025 |
| S275J2 | 1.0145 | En 10025 |
| S355JR | 1.0045 | En 10025 |
| S355J0 | 1.0553 | En 10025 |
| S355J2 | 1.0577 | En 10025 |
| S275NL | 1.0491 | En 10025 |
| S355NL | 1.0546 | En 10025 |
| S275ML | 1.8819 | En 10025 |
| S355ML | 1.8834 | En 10025 |

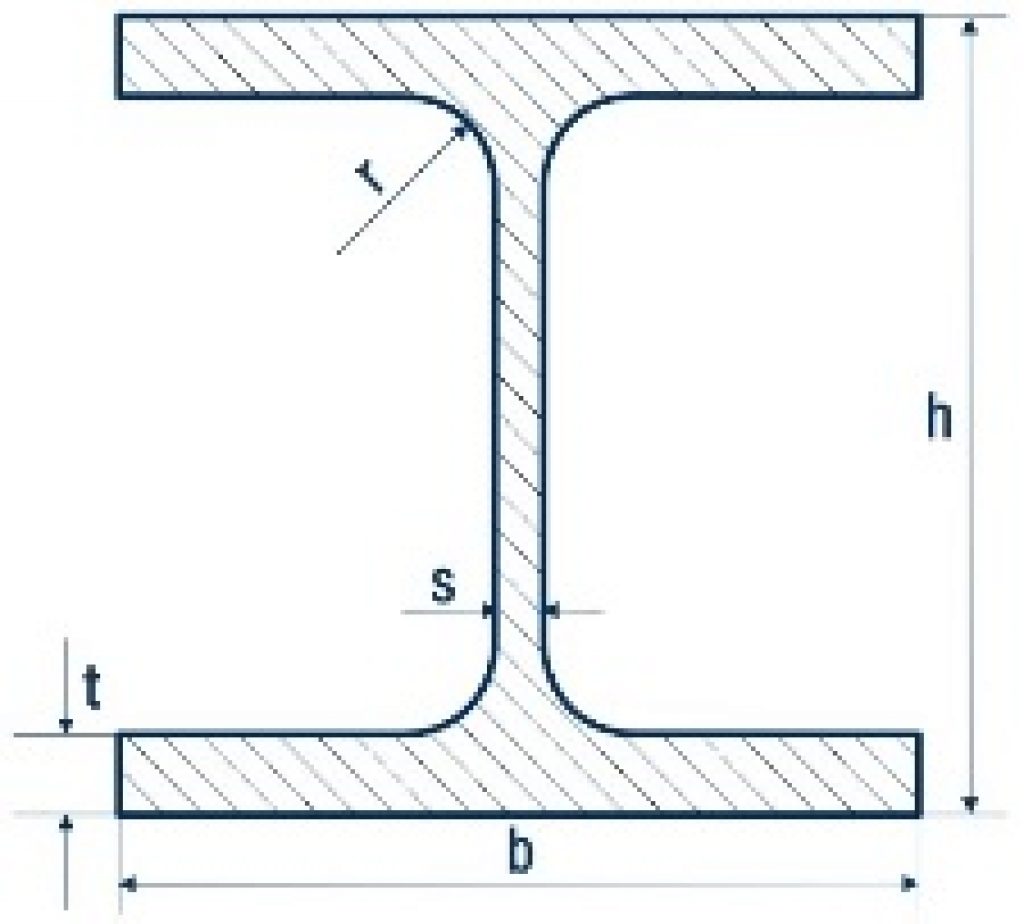

| Designation | Weight, kg/m | Height, mm | Width, mm | Wall thickness, mm | Shelf thickness, mm |
| Beam HEB 100 | 20.4 | 100 | 100 | 6 | 10 |
| Beam HEB 120 | 26.7 | 120 | 120 | 6.5 | 11 |
| Beam HEB 140 | 33.7 | 140 | 140 | 7 | 12 |
| Beam HEB 160 | 42.6 | 160 | 160 | 8 | 13 |
| Beam HEB 180 | 51.2 | 180 | 180 | 8.5 | 14 |
| Beam HEB 200 | 61.3 | 200 | 200 | 9 | 15 |
| Beam HEB 220 | 71.5 | 220 | 220 | 9.5 | 16 |
| Beam HEB 240 | 83.2 | 240 | 240 | 10 | 17 |
| Beam HEB 260 | 93 | 260 | 260 | 10 | 17.5 |
| Beam HEB 280 | 103 | 280 | 280 | 10.5 | 18 |
| HEB 300 beam | 117 | 300 | 300 | 11 | 19 |
| Beam HEB 320 | 127 | 320 | 300 | 11.5 | 20.5 |
| Beam HEB 340 | 134 | 340 | 300 | 12 | 21.5 |
| HEB 360 beam | 142 | 360 | 300 | 12.5 | 22.5 |
| HEB 400 beam | 155 | 400 | 300 | 13.5 | 24 |
| HEB 450 beam | 171 | 450 | 300 | 14 | 26 |
| HEB 500 beam | 187 | 500 | 300 | 14.5 | 28 |
| Beam HEB 550 | 199 | 550 | 300 | 15 | 29 |
| HEB 600 beam | 212 | 600 | 300 | 15.5 | 30 |
| HEB 650 beam | 225 | 650 | 300 | 16 | 31 |
| HEB 700 beam | 241 | 700 | 300 | 17 | 32 |
| HEB 800 beam | 262 | 800 | 300 | 17.5 | 33 |
| HEB 900 beam | 291 | 900 | 300 | 18.5 | 35 |
| HEB 1000 beam | 314 | 1000 | 300 | 19 | 36 |
